Panasonic AG-CX10 videokamera 4K Leica (Live Stream NDI/HX)
- Obj. čislo: 9999
- Výrobca: Panasonic

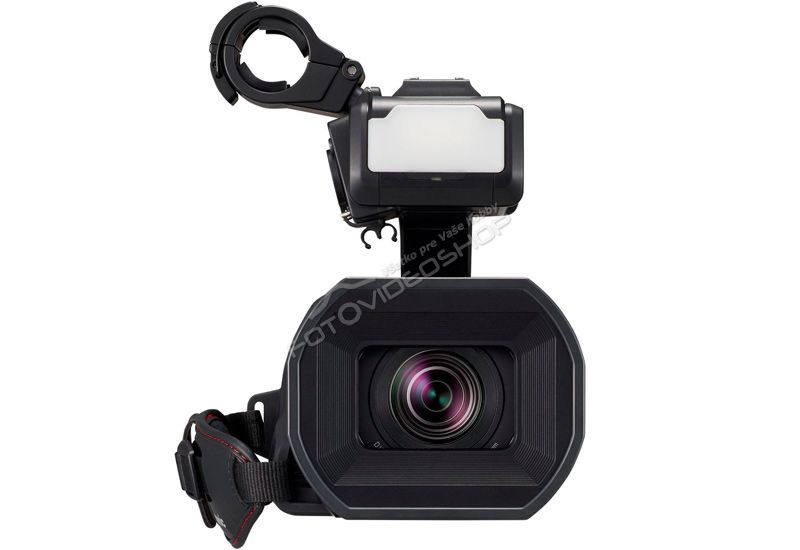

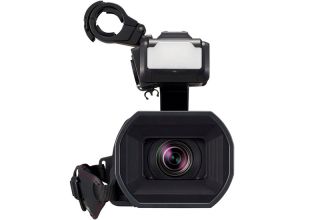

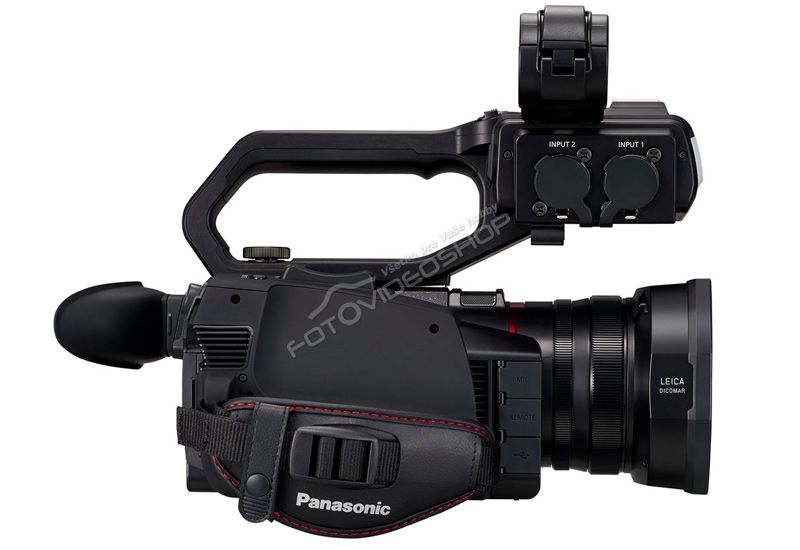

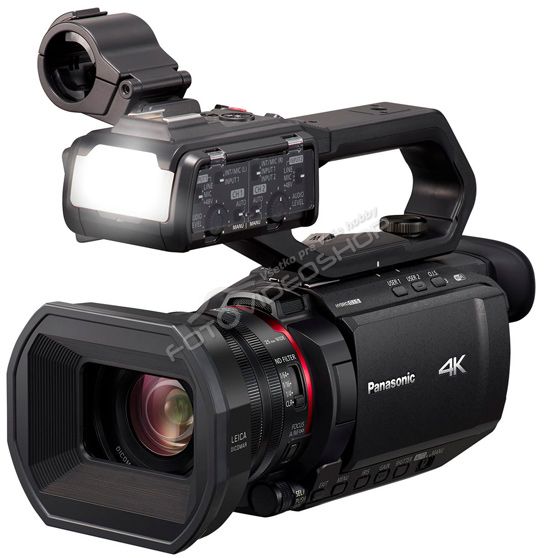

Panasonic AG-CX10
Balenie obsahuje:
- 1x Videokamera Panasonic AG-CX10
- 1x Sieťový zdroj
- 1x Napájací kábel
- 1x USB Micro-AB to Host Cable
- 1x USB Ethernet Adaptér
- 1x Li-ion batéria Panasonic AG-VBR59 (5 900 mAh)
- 1x Gumená očnica
- 1x Slnečná clona
Vlastnosti:
- Profesionálna videokamera Panasonic AG-CX10, s kompaktnými rozmermi
- Záznam videa s rozlíšením 4K 60p, (interne 4:2:2 v 10 bit. kvalite)
- Profesionálne xlR zvukové vstupy a podpora SDI
- Integrované LED videosvetlo s ovládaním výkonu na rukoväti kamery
- Nový kodek HEVC 200 Mb/s
- Spomalené zábery Super Slow Motion Full HD 120 fps (pre 59,94 Hz) / 100 fps (pre 50 Hz).
- Špičkový vysokovetelný objektív Leica Dicomar s rozsahom 25 - 600mm a svetelnosťou f1,8 - 4
- Optické 24-násobné priblíženie / Hybridný stabilizátor obrazu
- Automatické zaostrovanie / automatická expozícia s rozpoznávaním tváre
- 2x slot na pamäťové karty SDHC / SDXC/ micro P2
- Súčasťou kamery HC-X2000, sú dva manuálne prstence, jeden na zaostrovanie a druhý na približovanie alebo ovládanie clony.
- Živé vysielanie v rozlíšení Full HD
- kompatibilné vysielanie HD umožňuje priame pripojenie a vysielanie cez Facebook, YouTube a ďalšie platformy
- režim NDI | HX, umožňuje prenos dát a bezdrôtové ovládanie kamery kamery z mobilu ,alebo tabletu
| Konektory Panasonic AG-CX10: | |
| Video konektory | 1 x BNC (3G-SDI) výstup 1 x HDMI výstup |
| Audio konektory | 1 x 1/8" / 3.5 mm Stereo Headphone Output 2 x 3-Pin XLR Mic/Line (+48 V Phantom. napájanie) |
| Ostatné |
1 x USB Micro-B Input |
| Bezdrôtové rozhranie | 2.4 GHz Wi-Fi |
Špecifikácie AG-CX10
| SENSOR SECTION | |
|---|---|
| Image Sensor | 1/2.5-type (inch) MOS Sensor |
| Effective Pixels | 8.29 megapixels |
| LENS SECTION | |
| F Value | F1.8-4.0 |
| Optical Zoom | 24x |
| Focal Length | 4.12-98.9mm |
| 35 mm Film Camera Equivalent | 25.0-600.0 mm |
| Filter Diameter | 62 mm |
| Lens Brand | Leica Dicomar Lens |
| CAMERA SECTION | |
| Minimum Illumination | 1.5 lx (F1.8, Super Gain +, 1/30) |
| Focus | Auto / Manual |
| Zoom | Intelligent Zoom OFF: 24x |
| Intelligent Zoom ON: Max. 48x (UHD 32x) | |
| Digital Zoom: 2x / 5x / 10x | |
| ND Filter | 1/4, 1/16, 1/64, OFF |
| IR Filter | Incorporates the ON/OFF control function |
| White Balance | Auto / ATW LOCK / 3200K / 5600K / VAR (2000K-15000K) / Ach Fixed / Bch Fixed |
| Shutter Speed | 59.94 Hz mode ・59.94i/59.94p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec ・29.97p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec ・23.98p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec |
| 50.00 Hz mode ・50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec ・25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec |
|
| Slow Shutter Speed | 59.94 Hz mode 59.94i/59.94p: 1/8, 1/15, 1/30 sec 29.97p: 1/8, 1/15 sec 23.98p: 1/6, 1/12 sec |
| 50.00 Hz mode 50i/50p: 1/6, 1/12, 1/25 sec 25p: 1/6, 1/12 sec |
|
| Super Slow Recording Frame Rate | 59.94 Hz mode FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p) |
| 50.00 Hz mode FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p) |
|
| Iris | Auto / Manual |
| Image Stabilizer | Ball O.I.S., 5-Axis HYBRID O.I.S. (UHD/FHD) |
| RECORDING SECTION | |
| Recording Media | SDHC/SDXC Memory Card, microP2 card (A series, B series) |
| Recording Format | MOV, MP4, AVCHD, P2 |
| Video Compression Method | MOV/MP4: H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile AVCHD: H.264/MPEG-4 AVC High Profile P2: AVC-LongG 50/AVC-LongG25: MPEG-4 AVC/H.264 High Profile |
| Audio Compression Method | MOV / P2: LPCM (24bit 2ch) MP4: AAC (16bit 2ch) AVCHD: Dolby Audio (16bit 2ch) |
| System Frequency | 59.94Hz / 50.00Hz |
| Recording / Playback Mode | MOV (HEVC) [4:2:0 10bit] UHD 3840 x 2160 59.94p/50.00p HEVC 200M: Average 200 Mbps (VBR) UHD 3840 x 2160 29.97p/25.00p/23.98p HEVC 150M: Average 150 Mbps (VBR) |
| MOV [4:2:0 8bit] UHD 3840 x 2160 59.94p/50.00p 150M: Average 150 Mbps (VBR) UHD 3840 x 2160 29.97p/25.00p/23.98p 100M: Average 100 Mbps (VBR) [4:2:2 10bit] UHD 3840 x 2160 29.97p/25.00p/23.98p 150M: Average 150 Mbps (VBR) FHD 1920 x 1080 59.94p/50.00p 200M (ALL-Intra): Average 200 Mbps (VBR) FHD 1920 x 1080 29.97p/25.00p/23.98p 100M (ALL-Intra): Average 100 Mbps (VBR) FHD 1920 x 1080 59.94i/50i 100M (ALL-Intra): Average 100 Mbps (VBR) FHD 1920 x 1080 59.94p/50.00p 100M: Average 100 Mbps (VBR) FHD 1920 x 1080 29.97p/25.00p/23.98p/59.94i/50.00i 50M: Average 50 Mbps (VBR) |
|
| MP4 (HEVC) [4:2:0 10bit] UHD 3840 x 2160 59.94p/50.00p HEVC 100M: Average 100 Mbps (VBR) UHD 3840 x 2160 29.97p/25.00p/23.98p HEVC 72M: Average 72 Mbps (VBR) |
|
| MP4 [4:2:0 8bit] UHD 3840 x 2160 29.97p/25.00p/23.98p 72M: Average 72 Mbps (VBR) FHD 1920 x 1080 59.94p/50.00p/23.98p 50M: Average 50 Mbps (VBR) |
|
| AVCHD [4:2:0 8bit] PS 1920 x 1080 59.94p/50.00p: Average 25 Mbps (VBR) PH 1920 x 1080 59.94i/50.00i/23.98p: Average 21 Mbps (VBR) HA 1920 x 1080 59.94i/50.00i: Average 17 Mbps (VBR) PM 1280 x 720 59.94p/50.00p: Average 8 Mbps (VBR) |
|
| P2 [4:2:2 10bit] FHD 1920 x 1080 59.94p/50.00p/59.94i/50.00i: Average 50 Mbps (VBR) FHD 1920 x 1080 59.94i/50i: Average 25 Mbps (VBR) HD 1280 x 720 59.94p/50.00p: Average 50 Mbps (VBR) HD 1280 x 720 59.94p/50.00p: Average 25 Mbps (VBR) |
|
| LIVE STREAMING | |
| Video Compression Format | H.264/MPEG-4 AVC Main Profile, High Profile |
| Video Resolution | 1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180 |
| Streaming Method | Unicast, Multicast |
| Frame Rate | System frequency = 59.94 Hz: 30 fps, 60 fps System frequency = 50.00 Hz: 25 fps, 50 fps |
| Bit Rate | 24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps |
| Audio Compression Format | AAC-LC, 48 kHz/16 bit, 2ch |
| Network Protocol | RTSP/RTP/RTMP/RTMPS |
| STILL IMAGE SECTION | |
| Recording Format | JPEG (DCF/Exif2.2) |
| Recording Image Size* | Video Playback Mode: 3840 x 2160 (16:9), 1920 x 1080 (16:9), 1280 x 720 (16:9) |
| GENERAL SECTION | |
| Power Supply | 7.28V (Battery) / 12V (AC Adaptor) |
| Power Consumption | 15.5W (LCD Monitor) |
| Dimensions (W x H x D) | Approx. 129 x 159 x 257 mm (5.08 x 6.26 x 10.1 inch) |
| Weight | Body: approx. 0.9kg (1.98 lb) (body only, excluding handle, lens hood, battery, and accessories) Shooting: approx. 1.5kg (3.31 lb) (including handle, lens hood, battery, and eyecup) |
| LCD Monitor | 8.88 cm (3.5-inch) Wide LCD monitor (About 2,760,000 dots) (For Europe) 3.5-inch Wide LCD monitor (About 2,760,000 dots) (For North America / Asia) |
| Viewfinder | 0.61 cm (0.24-inch) Wide EVF (About 1,560,000 dots) (For Europe) 0.24-inch Wide EVF (About 1,560,000 dots) (For North America / Asia) |
| Manual Ring | Focus / Zoom or Iris |
| Accessory Shoe | Yes |
| LED Video Light | Average Illumination: Approx. 70 lx (1.0m) |
| Irradiation Angle: Approx. 30° | |
| Color Temperature: Approx. 4600K | |
| INTERFACE SECTION | |
| Video | SDI OUT: BNC x 1, 0.8V[p-p], 75Ω, 3G/1.5G HD-SDI supported Output format: 1080/59.94p LEVEL-A/50.00p LEVEL-A, 1080/29.97PsF/25.00PsF/23.98PsF, 1080/59.94i/50.00i, 720/59.94p/50.00p |
| HDMI: Type A x 1 (VIERA Link not supported) Output format: 2160/59.94p/50.00p/29.97p/25.00p/23.98p, 1080/59.94p/50.00p/29.97p/25.00p/23.98p/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94p, 576/50.00p |
|
| Audio Input | Built-in Microphone: Stereo microphone |
| Microphone Input: 3.5mm stereo mini jack x 1 | |
| XLR Input: XLR (3 pins) x 2 Input high impedance, LINE/MIC/MIC+48 V (switchable SW) LINE: +4dBu/0dBu (switchable menu) MIC: -40dBu/-50dBu/-60dBu (switchable menu) |
|
| Audio Output | SDI: 2 ch (LPCM 24bit) Gain: 0dB/-6dB/-8dB |
| HDMI: 2 ch (LPCM 24bit) | |
| Headphone: 3.5 mm diameter stereo mini jack x 1 | |
| Speaker: 15 mm diameter, round x 1 | |
| Other Input/Output | Camera Remote: 2.5mm super mini jack x 1 |
| USB 2.0 HOST: Micro-AB connector, 5-pin, only USB LAN conversion supported | |
| USB 2.0 DEVICE: Micro-AB connector, 5-pin, mass storage function (read only) | |
| DC IN: DC 12V (11.4V - 12.6V) EIAJ Type4 | |
| Wi-Fi | |
| Standard | IEEE 802.11b/g/n |
| Frequency | 2.4GHz band |
| STANDARD ACCESSORY | |
| AC Adaptor | Yes |
| AC Cable | Yes |
| Rechargeable Battery Pack | Yes (5,900mAh) |
| Handle Unit | Yes (detachable) |
| Battery Charger | - |
| IR Remote | - |
| HDMI Cable | - |
| AV Cable | - |
| USB Cable | Yes (Micro-AB to Host) |
| USB LAN Conversion Adaptor | Yes (VW-UEA1) |
| Microphone Holder | Yes |
| Microphone Holder Screws | Yes |
| Input Terminal Cap | - |
| Eye Cup | Yes |
| Lens Hood | Yes |
| Editing Software | - |
* Only images cut from video in video playback mode are supported.
Note: Specifications are subject to change without notice.
Špecifikácia Panasonic AG-CX10 videokamera 4K Leica (Live Stream NDI/HX)
| Rozlíšenie | 8,29 megapixla |
|---|---|
| Formát snímača | 1/2,5-palcový snímač MOS |
| vstavaný blesk | LED video svetlo 70 lx (1,0 m), 4 600K |
| autofokus AF | AF / MF |
| Rozlíšenie hľadáčika | 0,61 cm širokouhlý elektronický hľadáčik (približne 1 560 000 bodov) |
| displej | 8,88 cm 3,5" širokouhlý displej LCD (približne 2 760 000 bodov) |
| typ média | 2x SDHC/ SDXC / micro P2 cards |
| formát záznamu videa | H.265/MOV 4:2:0 10-Bit, MOV 4:2:2 10-Bit |
| Rozlíšenie videa | 3840 × 2160 59,94p / 1920 × 1080 59,94p |
| batéria | Panasonic AG-VBR59 |
| ohnisková vzdialenosť | 25 – 600 mm (35mm ekv.) |
| svetelnosť | F1,8 – 4,0 |
| priemer filtra | |
| obrazový stabilizátor | 5-osový stabilizátor HYBRID O.I.S. (UHD/FHD) |
| rozmery | 129 × 159 × 257 mm |
| hmotnosť | 1,5 kg (vrátane držadla, clony objektívu, batérie a okulára) |
| vstupy a výstupy | Výstup 3G SDI s podporou BNC, 2x XLR, HDMI, USB Micro, 3,5 mm stereo mikrofón, 3,5 mm slúchadlá, 2,5 mm pre diaľkové ovládanie, 12V vstup napájania, Wi-Fi |
| vstavaný mikrofón | áno (stereo) |
| zoom | 24× optický |
| funkcia Slow Motion | Full HD |
