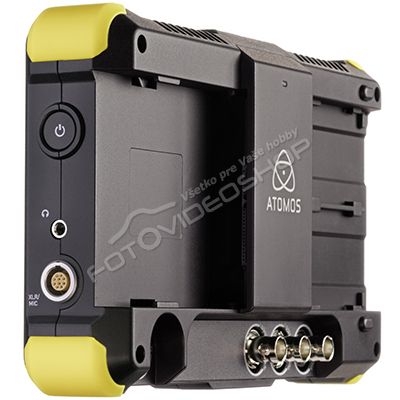

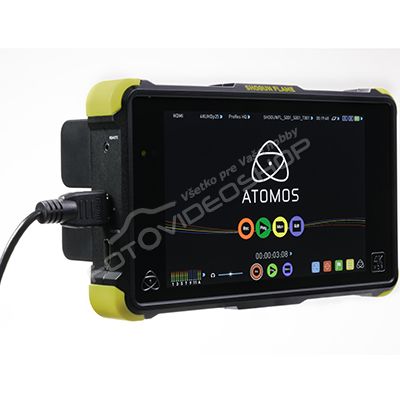

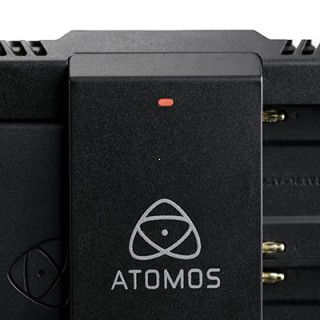

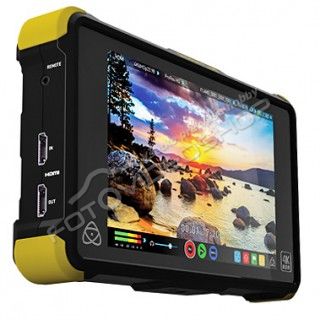

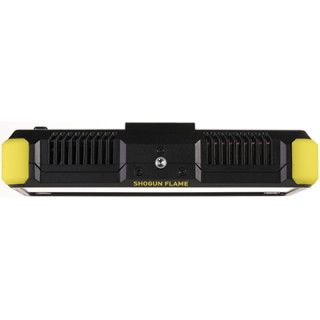

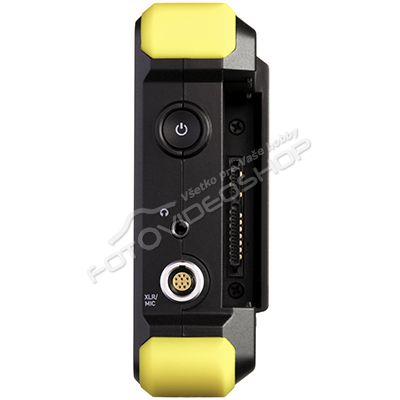

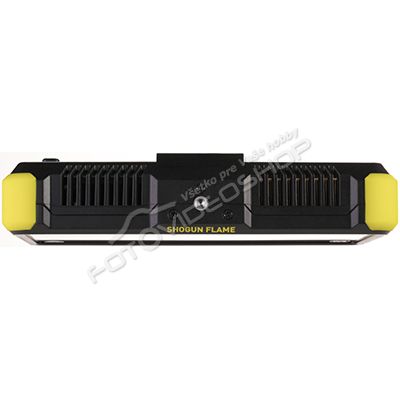

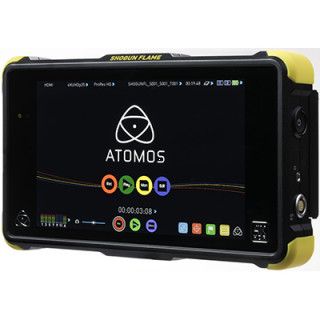

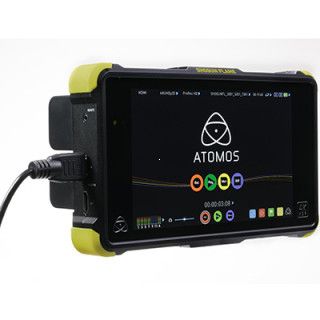

- Atomos - Shogun Flame (travel case)
Atomos - Shogun Flame (travel case)
Atomos - Shogun Flame (travel case)
Balenie obsahuje:
- 1x Shogun Flame
- 1x cestovné puzdro
- 1x XLR breakout cable (iba vstup)
- 1x Master Caddy II
- 2x 12V-3A AC adapter
+
Atomos - Shogun Flame - vlastnosti:
- 4K/HD 10-bit ProRes/DNxHR záznam + konverzia Sony & Canon Raw to ProRes/DNxHR
- profesionálne HDMI, SDI a XLR konektory
- LTC/Genlock a obojsmerná konverzia SDI/HDMI počas natáčania a pri vysielaní
- vysoký dynamický rozsah HDR log s prekreslenými tieňmi a žiarivými farbami
| Tabuľka kompatibility Atomos s kamerami a DSLR fotoaparátmi. |  |
| Tabuľka kompatibility Atomos a SSD diskov |  |
Shogun Flame - Špecifikácie:
| Weight | |
|---|---|
| Without batteries & media | 650g / 22.9oz |
| With batteries & media | 1094g / 38.6oz |
| Dimensions (W x H x D mm) | 214 x 127 x 45mm, 8.4 x 5 x 1.8” |
| Construction | High quality lightweight ABS Polycarbonate for durability & portability |
| Built-in armor protection | |
| Power | |
|---|---|
| Operating power | 10 - 24W |

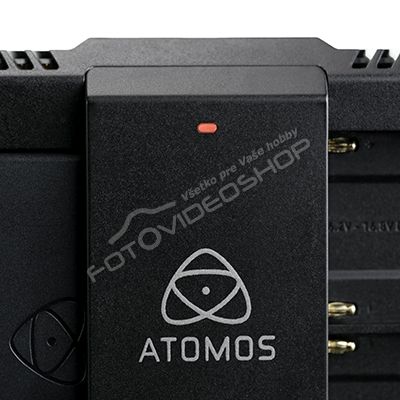

| Compatible batteries | NP-F series and supporting accessories |
| Input voltage (battery) | 6.2V to 16.8V |
| Battery time (based on 7.4V) | - |
| 5200mAh - up to 1.5hrs (monitor & record 4K 30p) | |
| 7800mAh - up to 2.2hrs (monitor & record 4K 30p) | |
| DC In | 1 x DC in (6.2 - 16.8V) |
| Continuous power ** Patent pending |
Primary-secondary battery system Change batteries without losing power Loop batteries continuously |

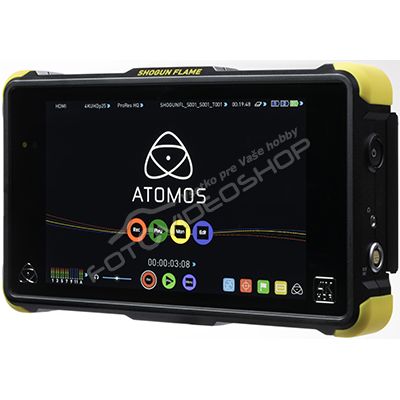

| Touchscreen | |
|---|---|
| Size | 7.1” |
| Resolution | 1920 x 1200 |
| PPI | 325 |
| Aspect ratio | 16:9 native |
| Color Gamut | REC709 HDTV |
| Look up table (LUT) support | 3D LUT (.cube le format) |
| Anamorphic de-squeeze | 2x, 1.5x, 1.33x, Panasonic 8:3 |
| Technology | SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit |
| HDR | |
|---|---|
| AtomHDR | Yes |
| Supported Log formats | Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm |
| Supported Gamuts | Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / BT2020 / DCI P3 / DCI P3+ Panasonic V Gamut Arri Alexa Wide Gamut |
| Bit depth | 10-bit (8+2 FRC) |
| Brightness | 1500nit (+/- 10%) |
| HDR input (PQ/HLG) HDR output (PQ/HLG) |
Yes / Yes Yes / Yes |
| Video input/loop out | |
|---|---|

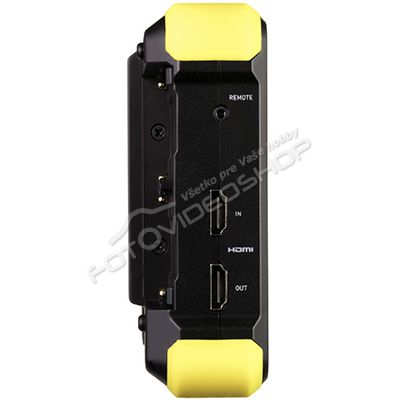

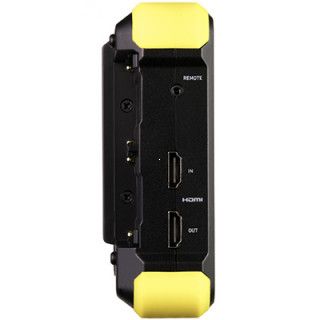

| HDMI | 1 x HDMI (1.4b) |
| SDI | 1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G (SMPTE) |
| Signal | Uncompressed true 10-bit or 8-bit 422 (camera dependent) |
| Video output (play out) | |
|---|---|
| HDMI | 1 x HDMI (1.4b) |
| SDI | 1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G |
| Signal | Uncompressed true 10-bit or 8-bit 422 (playback file dependent) |
| Supported loop out formats | |
|---|---|
| HDMI to HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/120, 2160p 24/25/30 |
| SDI to SDI | 720p 50/60, 1080i 50/60 1080pSF 24/25/30 1080p 24/25/30/50/60/120* 2160p 24/25/30 |
| Video signal conversion | |
|---|---|
| HDMI to SDI | 720p 50/60, 1080i 50/60 1080p 24/25/30/50/60/120* 2160p 24/25/30 |
| SDI to HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/120* 2160p 24/25/30 |
| Supported Codecs & frame rates (record & playback) | |
|---|---|
| Raw Record* | Sony FS5/FS7^^/FS700 CDNG 4K DCI; 24/25/30p 4K UHD; 2K; 24/25/30 1080; Canon C300MKII/C500 CDNG 4K DCI; 24/25/30p 4K UHD; 24/25/30p 2K; 1080; Panasonic VaricamLT CDNG* 4K DCI; 24/25/30p 4K UHD; 24/25/30p 2K; 1080; |
| Raw to ProRes / DNxHR | Sony FS5/FS7/FS700* ProRes (HQ, 422, LT) DNxHR (HQX, HQ, SQ, LB) 4K DCI; 24/25/30p 4K UHD; 2K; 24/25/30 1080; Canon C300MKII/C500 ProRes (HQ, 422, LT) DNxHR (HQX, HQ, SQ, LB) 4K DCI; 24/25/30p 4K UHD; 24/25/30p 2K; 1080; |
| Video to ProRes / DNxHR (DNx utilizes a .MOV wrapper) |
Codecs Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB Frame rates 4K DCI; N/A 4K UHD; 24/25/30p 2K; N/A 1080p; 24/25/30/50/60/100^/120p^ 1080i; 50/60i 720p; 50/60p |
| Onboard processing | |
|---|---|
| Pulldown removal | 24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown) |
| 4K UHD downscale for HD monitoring | Yes - Loop-out and playback (Not available in RAW) |
| Audio in/out (48kHz PCM audio) | |
|---|---|
| HDMI | 2 or 8ch 24-bit, camera dependent |
| SDI | 12ch 48kHz 24-bit |

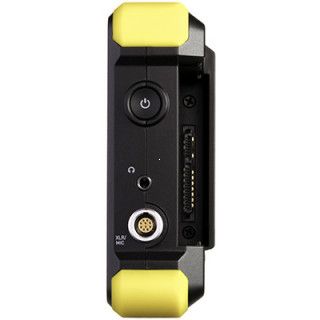

| Audio | 2ch balanced XLR analog in/out Dynamic range >90dB Max signal level +24dBu Max analog gain +52dB 48V Phantom Power for Mic |
| Remote start/stop | |
|---|---|
| HDMI | Auto HDMI Trigger Supported Protocols - Canon, Sony, Atomos Open Standard |
| SDI | SDI trigger camera selectable |
| Other | LANC control - Slave |
| Playback | |
|---|---|
| Playlist / Genlock / LTC | Yes / Yes / Yes |
| CDNG (Recorded content) | No support |
| ProRes (Recorded content) | All recorded files can playback. Playback in slow motion >= 100fps |
| DNxHR / DNxHD (recorded content) | All recorded les playback at native rate except 4K DCI which plays back at 24p only. Playback in slow motion >= 100fps |
| Recording | |
|---|---|
| Pre-roll record | Yes (HD 8s, 4K 2s) |
| Custom timelapse | Yes |
| Meta data tagging | Yes (10 tags available) |
| Supported media | 2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives |
| Master caddy case | Master Caddy II (included) 75mm x 105mm x 12mm |
| Master caddy dock | 2.5” SATA to USB 2.0/3.0 |
| Supported applications | FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+ EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015 |
| XML support | FCPX XML native, FCP7 supported with conversion (Adobe compatible) |
| Accessories included | Shogun Flame unit, Master Caddy II x 1, 12V-3A AC power supply, Breakout XLR cable |
| Optional extras | Accessory Kit: 2 x battery, 1 x charger, 1 x power supply, HPRC case, USB dock, control cable, Dtap cable, Master Caddy x 4, Power supply, Sun hood Power Kit: 2 x battery, 1 x charger, 1 x power supply Other: Atomos HDMI cable, X-Rite i1DisplayPro calibration |
