Tascam DR-60D MKII digitálny rekordér
Doprava zadarmo
- Obj. čislo: 5519
- Výrobca: Tascam

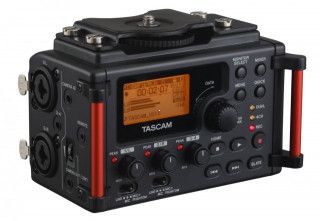

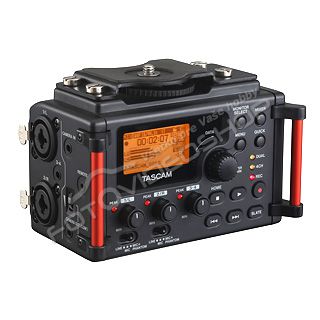

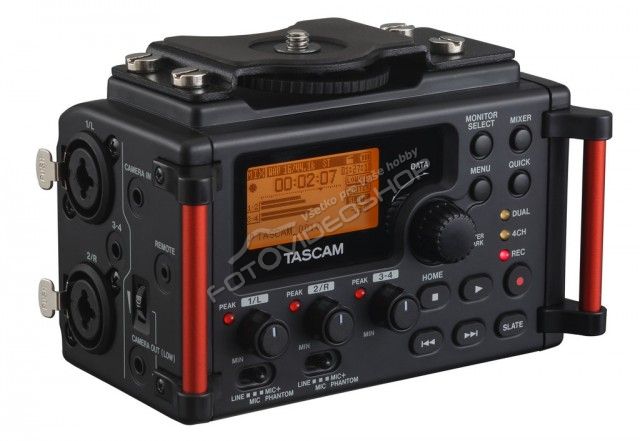

Špičkový 4- stopový audio rekordér DR-60D MKII, určený pre DSLR fotoaparáty, ale aj pre samostatné použitie. Tascam má aj xlR profesionálne vstupy a ukladá dáta na SD/ SDHC / SDXC pamäťové karty.
Viac informácií...

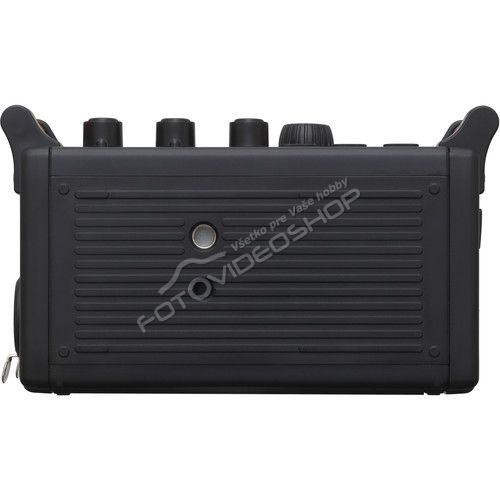

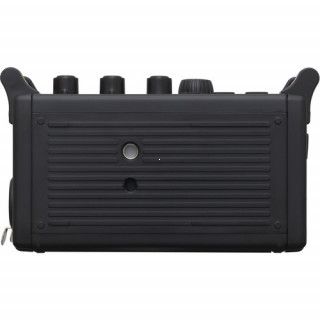

Tascam DR-60D MKII digitálny rekordér môžete jednoducho namontovať zospodu na váš digitálny fotoaparát a vytvoriť tak profesionálny DSLR video kit, DR-60 MKII má štandardný statívový závit 1/4"
Tascam DR-60D MKII- čo nájdete v balení ?
- 1x rekordér DR-60D MKII
- 1x USB kábel
- 1x návod na použitie
- 1x záručný list
Tascam DR-60D MKII špecifikácie:
DR-60DMKII SPECIFICATIONS
| Recording media | SD card(64MB to 2GB), SDHC card(4GB to 32GB) |
| Recording format | |
| WAV | 44.1/48/96kHz, 16/24bit |
| BWF | 44.1/48/96kHz, 16/24bit |
| Number of channels | 4-channel (stereo x2) |
| Analog audio input | |

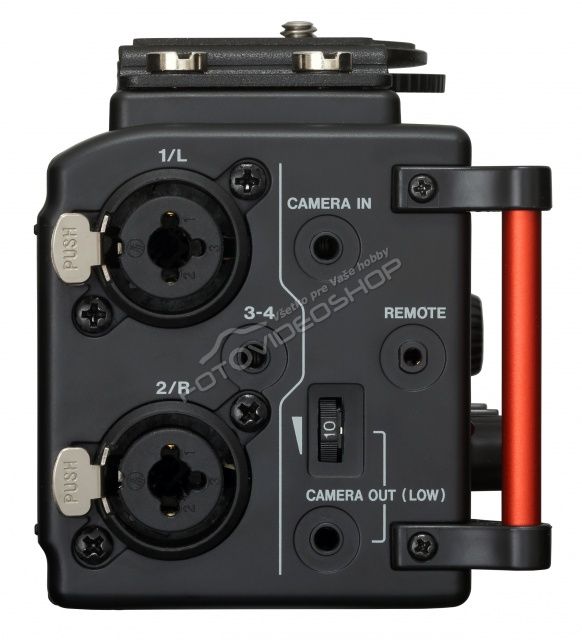

| 1/L, 2/R connectors | |
| Connector | XLR-3-31 (1:GND, 2:HOT, 3:COLD)/6.3mm(1/4")TRS standard jack |
| Set to "MIC / MIC+PHANTOM" | |
| Input impedance | 2k ohms |
| Phantom power | 48V +/-4V(10mA/CH) / 24V +/-4V(10mA/CH) |
| Maximum input level | 0dBu |
| Minimum input level | -72dBu |
| MIC input gain | TRIM MAX |
| LOW | +11dB |
| MID | +36dB |
| HIGH | +52dB |
| HIGH+PLUS | +64dB |
| Set to “LINE” | |
| Input impedance | 10k ohms or more |
| Standard input level | +4dBu |
| Maximum input level | +24dBu |
| 3-4 connector | |
| Connector | 3.5mm (1/8") stereo mini jack (this connector can be supplied plug-in power) |
| Input impedance | 10k ohms |
| Maximum input level | +10dBV |
| Minimum input level | -50dBV |
| MIC input gain | TRIM MAX |
| LOW | +3dB |
| HIGH | +26dB |
| HI + PLUS | +38dB |
| CAMERA IN connector | |
| Connector | 3.5mm (1/8") stereo mini jack |
| Input impedance | 10k ohms |
| Standard input level | -10dBV |
| Maximum input level | +6dBV |
| Analog audio output | |
| CAMERA OUT connector | |
| Connector | 3.5mm (1/8") stereo mini jack |
| Output impedance | 200 ohms |
| Standard output level | -50dBV |
| Maximum output level | -30dBV |
| LINE OUT connector | |
| Connector | 3.5mm (1/8") stereo mini jack |
| Output impedance | 200 ohms |
| Standard output level | -10dBV |
| Maximum output level | +10dBV |

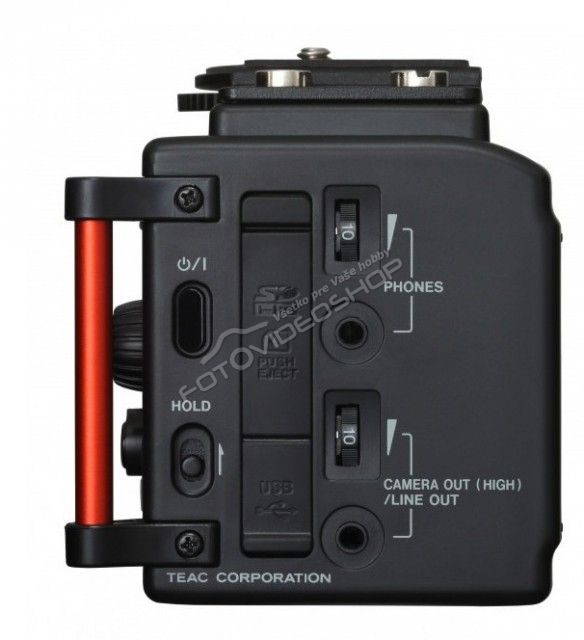

| PHONES connector | |
| Connector | 3.5mm (1/8") stereo mini jack |
| Maximum output level | 50mW + 50mW |
| USB | |
| Connector | Mini-B type |
| Format | USB2.0 HIGH SPEED mass storage class |
| REMOTE | |
| Connector | 2.5mm TRS jack |
| Power | Four AA batteries(Alkaline or NI-MH), USB bus power, Dedicated AC adapter(TASCAM PS-P515U, sold separately), Dedicated external battery pack(TASCAM BP-6AA, sold separately) |
| Power consumption | 5.4W |
| Continuous operation time | 2ch WAV, 44.1kHz, 16bit rec |
| DR-60D | |
| Alkaline batteries (EVOLTA) | About 2:30 min (Phantom on) About 4:30 min (Phantom off) |
| NI-MH batteries (eneloop) | About 3:15 min (Phantom on) About 5:00 min (Phantom off) |
| NI-MH batteries (eneloop pro) | About 3:45 min (Phantom on) About 6:00 min (Phantom off) |
| DR-60D+BP-6AA | |
| Alkaline batteries (EVOLTA) | About 5:30 min (Phantom on) About 10:30 min (Phantom off) |
| NI-MH batteries (eneloop) | About 7:30 min (Phantom on) About 12:00 min (Phantom off) |
| NI-MH batteries (eneloop pro) | About 9:30 min (Phantom on) About 14:30 min (Phantom off) |
| Dimensions | 133(W)×93.2(H)×78(D)mm (with the top adapter attached) |
| Weight | 510g (not including batteries) |
| Operating temperature | 0˚C to 40˚C |
| Standard accessories | USB cable, warranty card, Owner's manual |
| Computer compatibility | |
| Windows | |
| OS | Windows XP, Windows Vista, Windows 7, Windows 8 |
| CPU | Pentium 300MHz or more |
| RAM | 128MB or more |
| USB | recommended: USB2.0 |
| Macintosh | |
| OS | Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4), Mac OS X Leopard (V10.5), Mac OS X Snow Leopard(V10.6.8), OS X Lion(V10.7), OS X Mountain Lion(V10.8) |
| CPU | Power PC, iMac, G3, G4 266MHz or more |
| 64MB or more | |
| USB | recommended: USB2.0 |
| Audio performance | |
| Frequency response | 20-20kHz +0.5/-2dB(LINE IN or MIC IN to LINE OUT, Fs44.1k/48kHz, JEITA) 20-40kHz +0.5/-3dB(LINE IN or MIC IN to LINE OUT, Fs96kHz, JEITA) |
| Distortion | 0.02% or less(LINE IN or MIC IN to LINE OUT Fs44.1k/48k/96kHz, JEITA) |
| S/N ratio | 92dB or more(LINE IN or MIC IN to LINE OUT Fs44.1k/48k/96kHz, JEITA) |
| Equivalent input noise | -120dBu or more |
