Canon EOS C700 EF KIT
Canon EOS C700 EF KIT
Nová kamera EOS C700 zo série videokamier Canon Cinema, vyniká 35mm snímacím senzorom Dual Pixel CMOS AF s dynamickým rozsahom až 15EV ! Canon EOS C700 používa bajonet pre objektívy Canon EF.

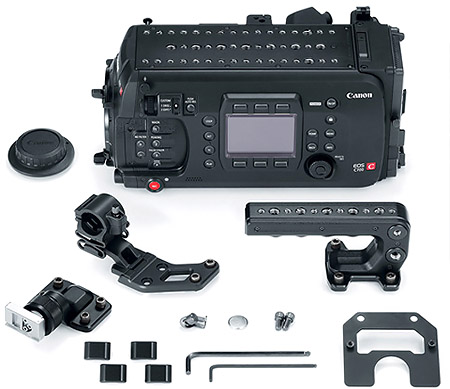

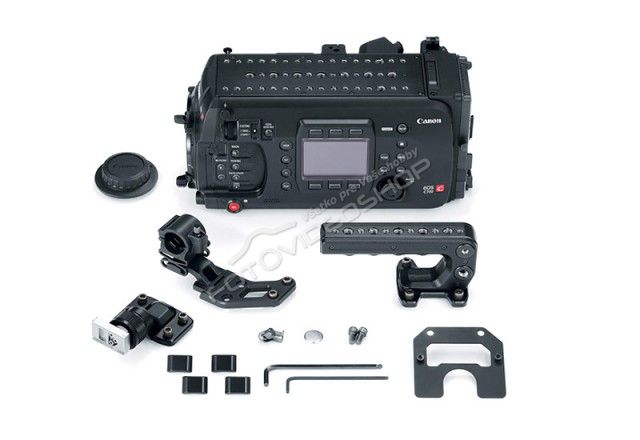

Canon EOS C700 EF kit
- 1x EOS C700 (telo bez objektívu)
- 1x krytka tela
- 1x rúčka
- 1x držiak mikrofónu
- 1x adaptér pre priipevnenie na statív
- 4 x Base Feet
- 1x WFT Attachment
- 2 x Measuring Hooks
- 1x Reinforcing Plate for Codex Recorder
- 1x Cable Clamp Base
- 2x nastavovací kľúč
- 1x malá batéria internej pamäte
- Super 35mm CMOS snímač
- Dynamický rozsah až 15 EV !
- EF Cinema Lock bajonet pre objektívy
- Dual Pixel CMOS AF senzor 4K až 60 fps , 2K / HD až 240 snímok za sekundu
- Proxy Záznam na SD karty
- Voliteľné Gamma / Log
- XF - AVC a ProRes Nahrávanie na CFast 2.0 karty
- Intuitívne užívateľské rozhranie
- RAW záznam
The EOS C700 offers the option of two different sensor designs. The EOS C700 offers a 4.5K CMOS sensor with 15 stops of dynamic range. The standard sensor will be offered in both PL and EF mounts. The EF mount version of the camera features Dual Pixel CMOS AF Technology.
The EOS C700 GS PL features global shutter technology. Global shutter technology is helpful for sports, fast action, concerts and events where it eliminates "jello" and "flash band" artifacts.
The image on a global shutter sensor is captured simultaneously by every pixel on the sensor. Standard CMOS sensors capture the image by scanning the scene from top to bottom. Depending on the speed of the scan, the time delay between the scan of the first line and the last sometimes results in a "jello" effect where straight lines appear curved or wobble as the camera or subject moves. By capturing the entire image at once these artifacts are removed. The EOS C700 GS PL features 14 stops of dynamic range and does not offer Dual Pixel CMOS AF.
Refined Ergonomics and Design

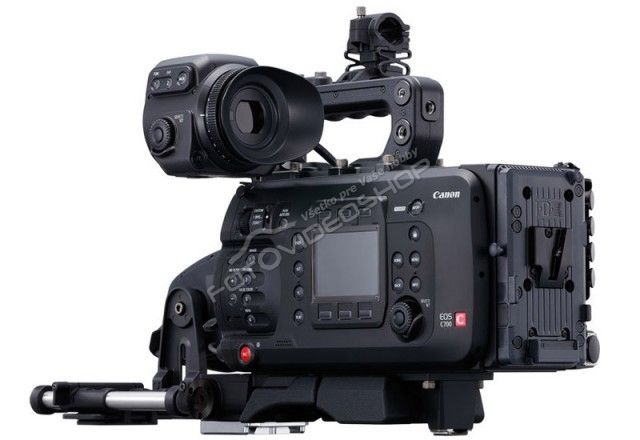

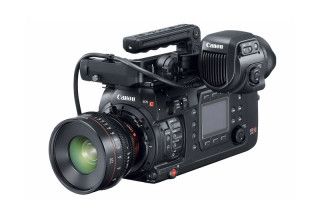

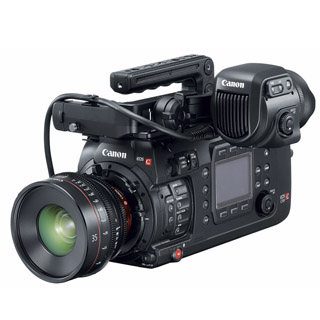

The EOS C700 features a new design when compared to previous Cinema EOS products. The EOS C700 is a full size cinema camera allowing for both traditional studio style and handheld configurations.

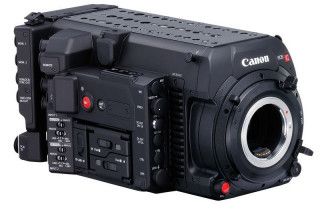

The camera body includes built in cheese plates with numerous 3/8-16 and 1/4-20 threaded holes on the top and bottom to easily attach accessories. The top handle attaches in a variety of positions for assisting in achieving optimum balance.

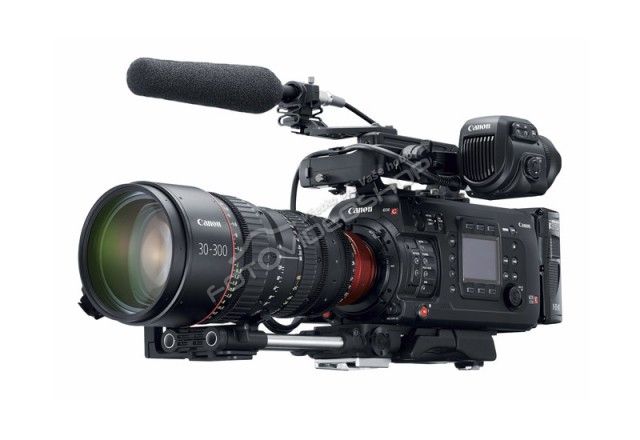

The EOS C700 has an optional 0.7-inch OLED Electronic Viewfinder (EVF-V70). Canon's first professional grade viewfinder features Full HD 1920x1080 viewing, surround view, view assist and false color. The EVF also has the ability to display an HDR simulated picture with a "stretched" dynamic range for increased shadow detail and highlight retention.

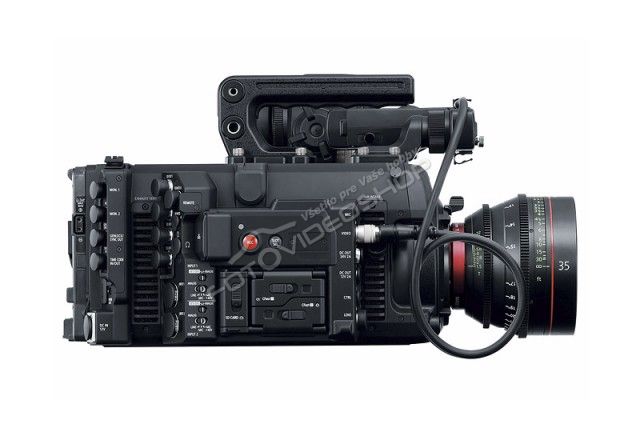

Both sides of the camera can have redundant main displays with menus and controls. A built in control panel on the camera operator side allows quick access to the camera controls. Canon's optional new Remote Operation Unit OU-700 attaches to the camera's right side and mimics all the functions of the built-in Main Display. It conveniently flips up for access to the CFast and SD card slots. This allows for camera operation from both sides of the camera making camera adjustment easy for both operator and assistant.
The intuitive six button layout of the menu system allows quick access to frequently used camera functions such as ISO, shutter, slow and fast motion, etc. and may instantly feel very familiar and comfortable to camera operators. Within each quick access function is the ability to access deeper menu options so complete camera control and customization is always accessible while the menu remains clean and easily usable.
With an optional Codex CDX-36150 attached, the EOS C700 can record uncompressed 10-bit or 12-bit 4K RAW up to 120 fps, 2K RAW up to 240 fps, or ProRes 4K up to 60 fps.
The Codex CDX-36150 is made specifically for the EOS C700 and attaches to the rear of the camera and is controlled directly through the cameras menu system.

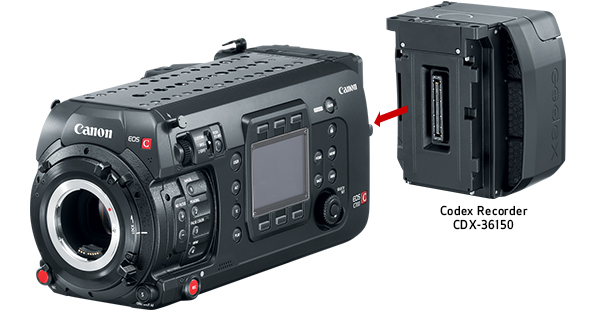

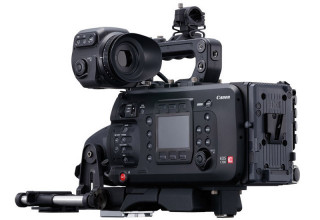

The Codex CDX-36150 RAW Recorder is attached to the EOS C700 by removing the battery plate at the rear of the EOS C700 and replacing it with the recorder. This modularity of the EOS C700 allows the recorder to be connected securely without wires and act like an integrated part rather than an external accessory. The rear of the Codex recorder has a battery plate with onboard Gold Mount battery connector. External power (10-32 VDC) can also be supplied to the 2-pin connector on the recorder body.
Codex CDX-36150 is an integrated system when attached to the EOS C700. The Codex Recorder allows recording not only 4K RAW, but also ProRes at significantly higher frame rates than internal CFast Cards. When recording RAW files are saved as a .RMF frame sequence in an uncompressed format with no "baked in setting." Clip development can then be easily adjusted in post using the included Canon Raw Development (CRD) software.
The CDX-36150 uses one Codex Capture Drive 2.0 (1 TB or 2 TB capacity), a familiar and commonly available professional recording media.

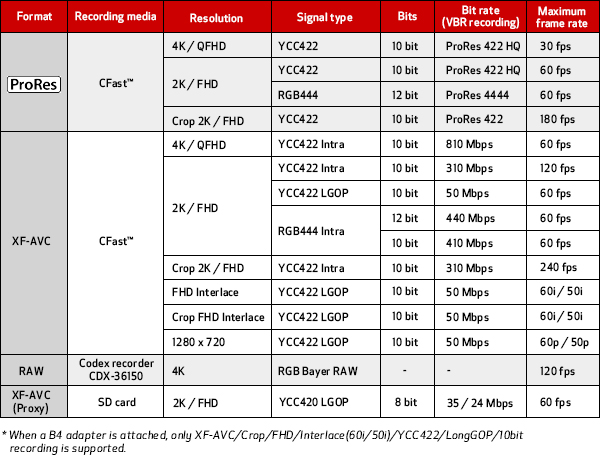

The EOS C700 has two modes of internal recording: Canon XF-AVC and Apple ProRes. Both record to internal CFast Media.
XF-AVC records up to 59.94p in 4K onto the CFast media.
The camera also records Apple ProRes to CFast media. This is the first time a Canon Cinema EOS camera records ProRes internally. This can help significantly reduce the time and cost of transcoding video files for productions using ProRes as an intermediate and delivery format.
Simultaneous dual CFast recording is available for creating an immediate backup.

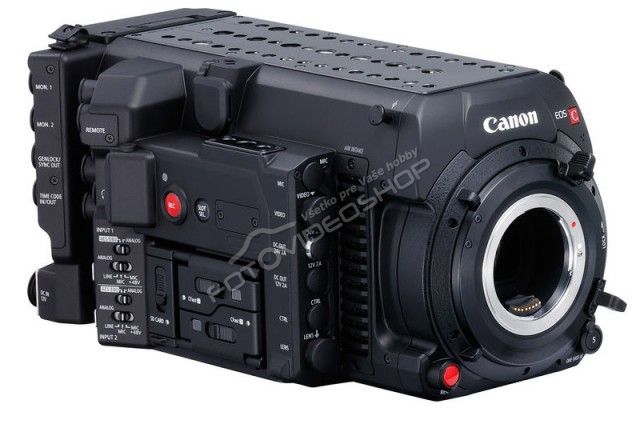

The EOS C700 features two CFast 2.0 card slots on the camera right side and one SD card slot. The EOS C700 can record XF-AVC and ProRes (along with metadata) simultaneously to either or both CFast cards.
Simultaneous recording is helpful, for example, where one card might go to the post house and the other could be stored safely in the production company's archive.
Relay recording is also possible for situations where changing cards and losing precious seconds is not an option (sporting events, speeches, nature documentaries). At the same time, an 8-bit 4:2:0 Proxy XF-AVC file can be recorded to the SD card for immediate editing. The SD card can also capture JPEG still frames (2048x1080 or 1920x1080), metadata, menus and other information.
The EOS C700 supports Canon Log 2 and Canon Log 3 Gamma. Canon Log is designed to reproduce, in post production, the entire tonal range that the CMOS image sensor is capable of. Log workflow provides the user with higher dynamic range, more highlight and shadow retention, and more flexibility in grading. Canon Log 2 provides the largest dynamic range and image detail.
While Canon Log 2 provides the most post-production flexibility and the full 15 stops of dynamic range of the sensor, it requires more post time. For users looking for most of the benefits of log workflow, but with shorter turnaround times, Canon Log 3 provides an alternative with only a slightly reduced dynamic range of 14 stops.
The EOS C700 features the option to output ST 2084 over the monitor port to assist in HDR production. ST 2084 allows compatible monitors to simulate the HDR look of the final piece allowing for easier lighting and other technical decisions on set during the acquisition process.
The optional Canon Electronic Viewfinder (EVF-V70) also allows for a ST 2084 simulation mode to allow the camera operator to see HDR visuals close to what is supplied on the monitor signal. This can further facilitate creative decisions on set where HDR reference equipment and output devices might not be available.
The EOS C700 Digital Cinema Camera features next generation Dual Pixel CMOS AF (DAF) Technology. Each pixel in the camera's CMOS sensor is configured with two photodiodes. Two independent image signals can then be detected at each photosite. By implementing phase-difference AF, smooth focusing is accomplished using Canon EF lenses with much higher speed and accuracy than was possible with previous technologies.
The EOS C700 has rapid one-touch AF (with a push-button) and continuous AF within approximately 80% of the overall image area. Face detection AF is another autofocus mode that can track a person's face in the frame and maintain focus on them.
To further fine tune AF performance, the EOS C700 offers the ability to set the AF tracking speed and response.

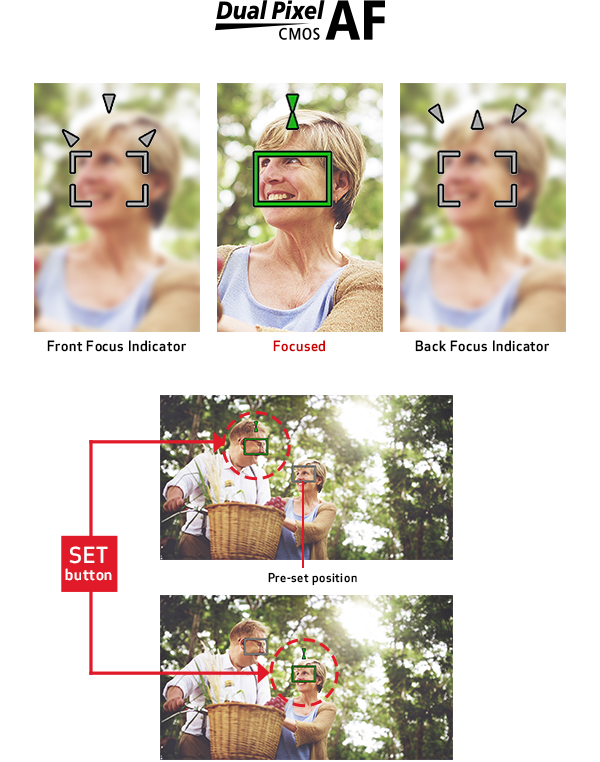

DAF also makes possible the Dual Pixel Focus Guide. Dual Pixel Focus Guide presents the user with a rectangle in the center of the EVF or monitor. The rectangle turns green when the subject is in focus. If the subject is out of focus the box will turn gray and the arrows will indicate which way to adjust the lens to regain focus.
Špecifikácia Canon EOS C700 EF KIT
|Rozlíšenie||11,54 MPx (4622 x 2496)|
|Formát snímača||Super 35mm CMOS|
|obrazový procesor||Triple DIGIC DV 5|
|ISO - maximálna citlivosť||100 - 102 400|
|Rozlíšenie hľadáčika||Canon EVF-V70 (nieje v balení)|
|displej||3,0 "/ 7,66 cm (1 036 000 bodov)|
|typ média||CFast / SDXC|
|formát záznamu videa||XF-AVC / MPEG-4 AVC / H.264|
|Rozlíšenie videa||4096 x 2160: YCC422 10-bit|
|batéria||V-mount (nieje v balení)|
|rozmery||16,7 x 15,4 x 32,7 cm|
|Hmotnosť balenia||5,8 kg|
