Atomos - Ninja Flame (travel case) ( 3 roky záruka )
- Obj. čislo: Atomos - Ninja Flame (travel case)
- Výrobca: Atomos

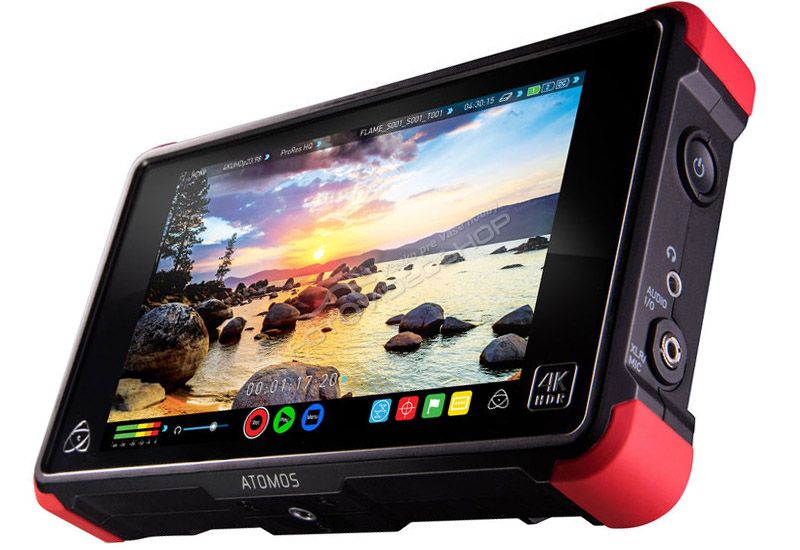

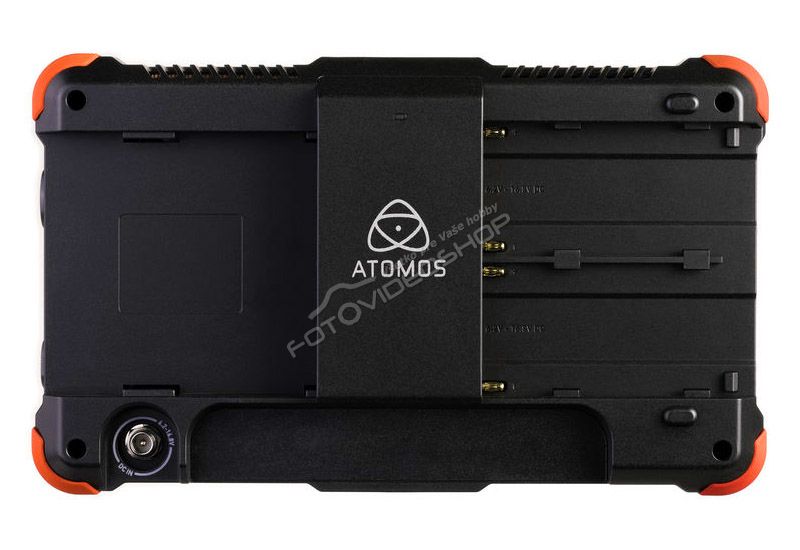

Atomos - Ninja Flame (travel case)

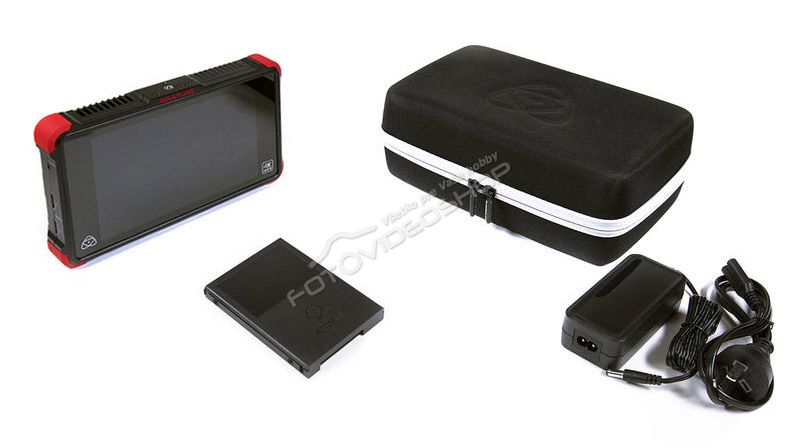

Balenie obsahuje:
- 1x Ninja Flame
- 1x cestovný kufrík
- 1x Master Caddy II
- 1x 12V-3A AC adapter
Atomos - Ninja Flame - vlastnosti:
- 4K/HD 10-bit ProRes/DNx záznam cezHDMI
- 7-palcový AtomHDR monitor so svietivosťou 1500cd / m2
- vysoký dynamický rozsah HDR log s prekreslenými tieňmi a žiarivými farbami
Tabuľka kompatibility Atomos s kamerami a DSLR fotoaparátmi. | |
Tabuľka kompatibility Atomos a SSD diskov |
Atomos - Ninja Flame - špecifikácie:
Weight | |
---|---|
Without batteries & media | 620g / 21.9oz |
With batteries & media | 1064g / 37.5oz |
Dimensions (W x H x D mm) | 214 x 127 x 45mm, 8.4 x 5 x 1.8” |
Construction | High quality lightweight ABS Polycarbonate for durability & portability |
Built-in armor protection |
Power | |
---|---|
Operating power | 10 - 24W |
Compatible batteries | NP-F series and supporting accessories |
Input voltage (battery) | 6.2V to 16.8V |
Battery time (based on 7.4V) | - |
5200mAh - up to 1.5hrs (monitor & record 4K 30p) | |
7800mAh - up to 2.2hrs (monitor & record 4K 30p) | |
DC In | 1 x DC in (6.2 - 16.8V) |
Continuous power * Patent pending |
Primary-secondary battery system Change batteries without losing power Loop batteries continuously |
Touchscreen | |
---|---|
Size | 7.1” |
Resolution | 1920 x 1200 |
PPI | 325 |
Aspect ratio | 16:9 native |
Color Gamut | REC709 HDTV |
Look up table (LUT) support | 3D LUT (.cube le format) |
Anamorphic de-squeeze | 2x, 1.5x, 1.33x, Panasonic 8:3 |
Technology | SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit |
HDR | |
---|---|
AtomHDR | Yes |
Supported Log formats | Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm |
Supported Gamuts | Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / BT2020 / DCI P3 / DCI P3+ Panasonic V Gamut Arri Alexa Wide Gamut |
Bit depth | 10-bit (8+2 FRC) |
Brightness | 1500nit (+/- 10%) |
HDR input (PQ/HLG) HDR output (PQ/HLG) |
Yes / Yes Yes / Yes |
Video input/loop out | |
---|---|
HDMI | 1 x HDMI (1.4b) |
SDI | - |
Signal | Uncompressed true 10-bit or 8-bit 422 (camera dependent) |
Video output (play out) | |
---|---|
HDMI | 1 x HDMI (1.4b) |
SDI | - |
Signal | Uncompressed true 10-bit or 8-bit 422 (playback file dependent) |
Supported loop out formats | |
---|---|
HDMI to HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/120, 2160p 24/25/30 |
SDI to SDI |
Video signal conversion | |
---|---|
HDMI to SDI | |
SDI to HDMI |
Supported Codecs & frame rates (record & playback) | |
---|---|
Raw to CDNG (Record only)* | N/A |
Raw to ProRes / DNxHR | N/A |
Video to ProRes / DNxHR | Codecs Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB Frame rates 4K UHD; 24/25/30 1080p; 24/SF24/25/SF25/30/SF30/50/60/100/120 1080i; 50/60i 720p; 50/60p |
Onboard processing | |
---|---|
Pulldown removal | 24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown) |
4K UHD downscale for HD monitoring | Yes - Loop-out and playback |
Audio in/out (48kHz PCM audio) | |
---|---|
HDMI | 2 or 8ch 24-bit, camera dependent |
SDI | - |
Audio | Line in / Mic in / Headphone out 2ch 48kHz 24-bit |
Remote start/stop | |
---|---|
HDMI | Auto HDMI Trigger Supported Protocols - Canon, Sony, Atomos Open Standard |
SDI | - |
Other | LANC control - Slave |
Playback | |
---|---|
Playlist / Genlock / LTC | Yes / No / No |
CDNG (Recorded content) | N/A |
ProRes (Recorded content) | All recorded files can playback. Playback in slow motion >= 100fps |
DNxHR / DNxHD (recorded content) | All recorded files can playback. Playback in slow motion >= 100fps |
Recording | |
---|---|
Pre-roll record | Yes (HD 8s, 4K 2s) |
Custom timelapse | Yes |
Meta data tagging | Yes (10 tags available) |
Supported media | 2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives |
Master caddy case | Master Caddy II (included) 75mm x 105mm x 12mm |
Master caddy dock | 2.5” SATA to USB 2.0/3.0 |
Supported applications | FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+ EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015 |
XML support | FCPX XML native, FCP7 supported with conversion (Adobe compatible) |
Accessories included | Ninja Flame unit, Master Caddy II x 1, 12V-3A AC power supply |
Optional extras | Accessory Kit: 2 x battery, 1 x charger, 1 x power supply, HPRC case, USB dock, control cable, Dtap cable, Master Caddy x 4, Power supply, Sun hood Power Kit: 2 x battery, 1 x charger, 1 x power supply Other: Atomos HDMI cable, X-Rite i1DisplayPro calibration |
Špecifikácia Atomos - Ninja Flame (travel case) ( 3 roky záruka )
rozmery | 214 x 127 x 45mm |
---|---|
hmotnosť | 620/ 1064g (s batériou) |
